OASE FiltoClear 19000
Pressure filter with first-class filter performance and special functions, available either individually or as a set with matching pump. Clear water guarantee: effective nutrient decomposition thanks to large filter surface and integrated UVC clarifier for the removal of pathogens, floating algae and turbidity.
All operating elements are integrated in the cover. This allows the filter to be sunk into the ground at ground level and blends harmoniously into any garden landscape.
- Clear water guaranteed through the ideal combination of filter, pump and UVC technology
- Convenient cleaning thanks to patented
- Easy Clean Technology Almost invisible integration in the environment
Characteristics
- Combination of mechanical biological cleaning and effective UVC technology
- Including OASE Clear Water Guarantee
- Ideal for supplying higher elevated watercourses and architectural pools
- Patented Easy-Clean technology for easy and easy cleaning without opening the filter

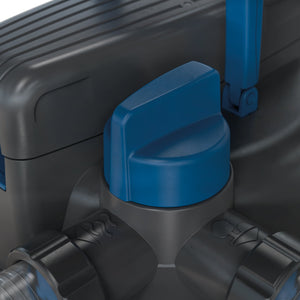

- Cleaning and backflush function can be easily operated on the cover
- Possibility of monitoring the UVC clarifier, filter contamination and water flow-through
- Compact filter size with high filtration capacity - perfect for architectural pools and where there is little space in the garden
- High-quality, impact-resistant material
- Integrated in the natural environment, thanks to the possibility of in ground installation and the sandstone look of the cover
Specifications
|
Product Number |
03OP014 | 88449 |
|
Dimensions - Ø x H mm |
380 x 608 |
|
Rated voltage + frequency |
230 V / 50 Hz |
|
Power consumption - W |
42 W |
|
Power cable length - m |
5 m |
|
Size - mm |
380 x 608 |
|
Net weight |
9.6 kg |
|
Guarantee (+ request guarantee) - years |
2 + 1 Years |
|
UVC power – W |
42 W |
|
Number of blue filter foams |
2 Units |
|
Number of red filter foams |
1 Unit |
|
Number of purple filter foams |
1 Unit |
|
Pollutant level indicator |
Yes |
|
Temperature display |
No |
|
Connection inlet - mm |
38 / 50 mm |
|
Connection inlet |
1 ½", 2" |
|
Connections outlet - mm |
38 / 50 mm |
|
Connections outlet |
1 ½", 2" |
|
Connections sludge discharge - mm |
38 / 50 mm |
|
Connections, sludge discharge |
1 ½", 2" |
|
Max. flow rate - l/h |
13000 l/h |
|
Max. operating pressure – bar |
0.2 bar |
|
Suitable for ponds up to max. – m³ |
19 m³ |
|
Suitable for ponds with fish stock – m³ |
10 m³ |
|
Suitable for ponds with koi – m³ |
5 m³ |
Spare Parts
|
Part Name |
Part Number |
|
Replacement foam set | 77874 |
11OS424 |
|
Replacement Bulb UVC Eco 42w | 77871 |
11OS444 |
|
Quartz glass D44 x 429 with rim | 74378 |
11OS490 |
|
Lid O-Ring 330mm | 77773 |
11OS340 |
|
Clamping ring |
11OS528 |
|
Filter body | 89003 |
11OS363 |
|
Mesh tube | 21654 |
11OS250 |
|
O-Ring Quartz Viton 42 x 5 | 73486 |
11OS179 |
|
Holder foam distance plate FC 5000-31000 | 77733 |
11OS494 |
|
Spare Cleaning Impellor FC19000 | 90685 |
11OS479 |
|
Spare lamp head UVC FiltoClear 42 W | 74371 |
11OS487 |
|
Spare part FiltoClear 19000 handle / rods | 83890 |
TBA |
