OASE Bitron C 110 UVC

UVC clarifier with integrated automatic cleaning impeller for the quartz sleeves. Removal of floating algae and harmful bacteria as if by magic. The bypass technology enables optimised radiation of the polluted water even at high flow rates. Suitable for ponds up to 110 m³.

Clever bypass system combines high flow rates with duration of radiation

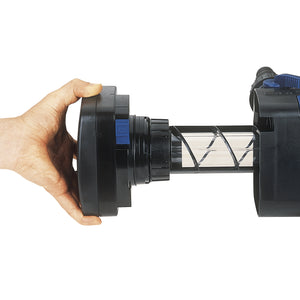

Permanent self-cleaning thanks to patented cleaning rotor
Highly effective against suspended algae, bacteria and germs

Find A Dealer

Download Instructions

Characteristics

Specifications

Spare Parts

Subscribe To Our Newsletter

Stay up to date with OASE's latest products, pro-tips, news and more.

Product Number	03OU010 \| 56902
Rated voltage + frequency	220 - 240 V / 50/60 Hz
Power consumption - W	110 W
Power cable length - m	5 m
Net weight	6.500 kg
Guarantee - years	2 Years
UVC power – W	110 W
Temperature display	No
Bypass control	manually
UVC operating hours meter	No
Function check	Visual
Number of inlets – pc.	1 Units
Connection inlet - mm	19 / 25 / 32 / 38 / 50 mm
Connection inlet	¾", 1", 1 ¼", 1 ½", 2"
Number of outlets – pc.	2 Units
Connections outlet - mm	25 / 32 / 38 mm
Connections outlet	1", 1 ¼", 1 ½"
Min. flow rate - l/h	12000 l/h
Max. flow rate - l/h	40000 l/h
Max. operating pressure – bar	1 bar
Suitable for ponds up to max. – m³	110 m³
Suitable for ponds with fish stock – m³	55 m³
Suitable for ponds with koi – m³	27.5 m³
Connection to	BioTec 30, BioTec ScreenMatic² 90 - 140000, ProfiClear

Part Name	Part Number
Electronic Bitron C \| 31002	11OS222
O-Ring NBR 102 x 3 \| 73488	11OS194
55w UV Globe (240v)	11PS168
Quartz Sleeve \| 13327	11OS328
O-Ring Viton 65 x 6 \| 27117	11OS113
ASM Clamp Screw Bitron C \| 35330	11OS086
Additional pack Bitron C \| 35092	11OS261
Impeller Bitron C \| 35327	11OS109
